Product Description

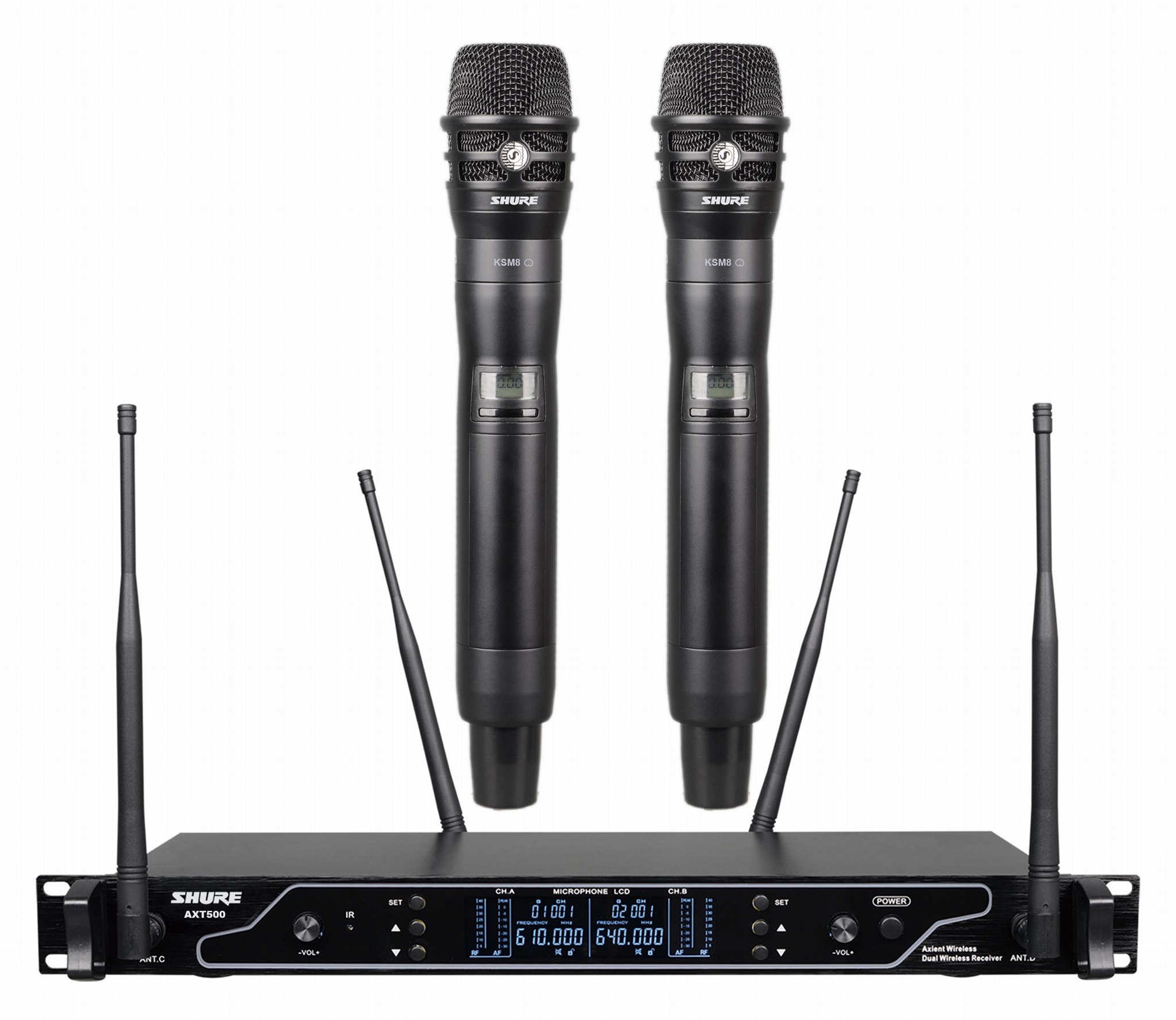

NEW True Diversity Dual Channel UHF Wireless Microphone

SHURE AXT500, BETA87 (80-120M )

Transmitter Package Including:
High class wireless microphone

2 Handheld microphones
Two AA 1.5V battery

Receiver Package Including:
AXT rack receiver
Two antenna
A user manual

Wireless RF frequency range 650-699 MHz
Carrier frequency of the number of max 3000
Default number of max 64
Exchange bandwidth max 75 MHz
Peak deviation + / - 48 kHz
Squelch thresholds Off, 5 ... 25 dBμV
Intermodulation spacing ≥ 75 dB
Antenna socket 2 BNC (50 OHM) Product
Stackable receptacle 2 BNC (50 OHM)
Gain of 0 dB, ± 0,5 dB
Compander HDX
Frequency response 25 ... 18000 Hz
Signal to Noise Ratio> 120 dB (A)
THD, total harmonic distortion <0,9%
Audio-XLR connector 2x the XLR-3 + 2x 6,3 mm,
Audio output level (balanced) +18 dBu max
Signal enhancement to 12 V DC, 2 x 200 mA
Operating ambient temperature -10 ° C ... +55 ° C
Power supply 100 - 240 V AC, 50/60 Hz
Power consumption (current) max. 0,25 A


Technical indicators
Wireless RF frequency range 650-699 MHz
Carrier frequency of the number of max 3000
Default number of max 64
Exchange bandwidth max 75 MHz
RF output power of 10, 30, 50 mW (U.S.: 100 mW)
Nominal frequency deviation ± 24 kHz,
Peak frequency deviation of ± 48 kHz
Compander HDX
Frequency response 60 ..... 15 000 Hz
Total harmonic distortion (THD) <0,9%
Package size: 52*40.5*9.5cm
Net Weight: 5kg

Price Terms︰ EX-W

Payment Terms︰ TT WsterN Union

Lead Time︰ 2 days

Color︰ Black

Quality Rate ︰ Exporting Version Top
